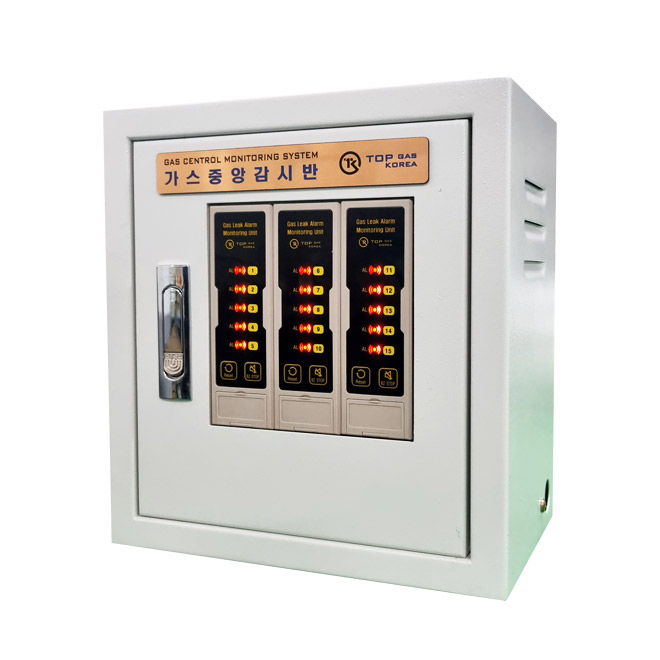

Multi-Circuit, MA-510
| The central monitoring panel receives the alarm signals from gas leak detectors installed in each area via a wired connection, allowing for real-time monitoring of the status of each location in the central control room. |
첨부파일
본문
| Model | MA-500 | MA-510 |
|---|---|---|
| · Power Supply | 100-240Vac, 50/60Hz | |
| · Power Consumption | 0.9W | 1.7W/Unit |
| · Alarm Input | 9 Circuits | Expandable 5-Circuit Unit, Multi-Circuit (Order Specification) |
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RH | |
| · Display | Alarm (AL): red flashing, Open circuit : red off | |
| · External Signal | Alarm: Relay C contact , Dry Contact (Order Specification) | |
| · External Dimensions(mm) | 155Wx75Dx200H | 275Wx170Dx253H (15 Circuits Standard) |
| · Weight(Kg) | 0.67 | 4.9 |
