CA-203(VA-032/VA-040/VA-50A/VA-65A)

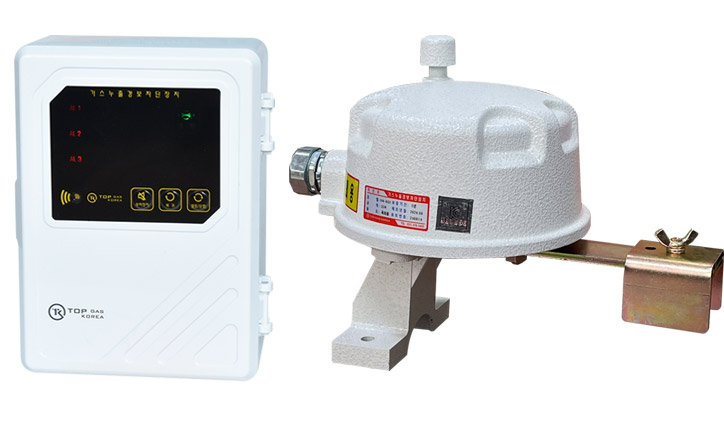

| This product consists of a detection unit (gas leak detector) that detects gas leaks, a control unit that receives the gas leak signal and controls the gas valve, and a shutoff unit that controls the gas valve. It automatically shuts off the gas supply in case of a gas leak at locations with gas facilities, preventing accidents such as gas explosions, fires, and poisoning. |
첨부파일
본문
| C | A | - | 2 | 0 | 3 | C |
|---|---|---|---|---|---|---|
| Control Unit | Design Type | - | 1 : 15A~25A 2 : 32A~150A |
0 : Wall Mounted 1 : Panel Mounted |
1 : 1 Circuit 2 : 2 Circuits 3 : 3 Circuits 9 : 9 Circuits |
NIL : Basic Specifications C : Wired Communication |
| Model | CA-203 |
|---|---|
| · Power Supply | 100~240Vac |
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RHd |
| · Power Consumption | 3W |
| · Switching Method | Remote and Manual Opening |
| · Alarm Display | Red LED, Buzzer Alert |
| · Input Circuit | 3 Circuits |
| · External Output(Option) | Contact, RS-485 |
| · External Dimensions(mm) | 155W×75D×200H |
| · Weight(g) | 730 |
| Model | VA-032 | VA-040 | VA-050 | VA-065 |
|---|---|---|---|---|
| · Shutoff Method | Handle Operated | |||
| · Power Supply | 24Vdc | |||
| · Operating Temperature and Humidity | -20℃~50℃, ≤95% RH | |||
| · TORQUE (N⦁m) | ≥176.5 | |||
| · Shutoff Speed | <30 Seconds | |||
| · Operation Control Method | Limit Switch | |||
| · Applicable Pipe Diameter | 32A | 40A | 50A | 65A |
| · External Dimensions(mm) | 280W×165D×200H | 280W×165D×210H | 280W×165D×210H | 340W×165D×275H |
| · Weight(Kg) | 3 | 3.1 | 3.2 | 3.6 |
