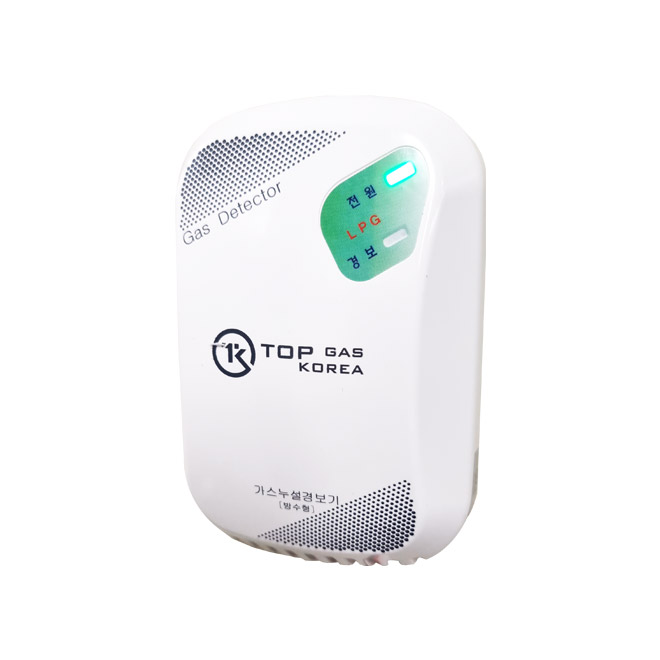

DA-30P/N , DA-32P/N _ AC Type
| This product uses AC power from the control unit, detects gas leaks in residential and commercial gas-using locations, and alarms the user, thereby preventing accidents such as gas explosions, fires, and poisoning. |
첨부파일
본문
| D | A | - | 3 | 0 | P |
|---|---|---|---|---|---|
| Gas Leak Detector | Design Type | - | Residential Use | 0 : AC Type, DC Signal 2 : AC Type, AC 220V Signal |
P : LPG N : LNG |
| MODEL | DA-30P/N | DA-32P/N |
|---|---|---|
| · Model | AC220V, Standalone, Immediate Alarm, Diffusion, Contact Combustion, Waterproof, For LPG (P), For LNG (N) | |
| · Power Supply | AC220V/60Hz | |
| · Operating Temperature and Humidity | -20℃~40℃, ≤95% RH | |
| · Power Consumption(W) | 1.7 | 1.8 |
| · Applicable Gas | P : LPG N : LNG | |
| · Alarm Concentration | P : 2,500PPM(±500PPM) N : 6,000PPM (±1,000PPM) | |
| · Alarm Display | Yellow LED, Buzzer Alert (≥70dB @1m) | |
| · Response Time | <20Sec (@25%LEL) | |
| · Alarm Output | Normal : DC5V, Alarm : DC10V | B Contact, Wet Contact, Normal: AC220V, Alarm : AC0V |
| · Dimensions(mm) | 73W×40D×110H | |
| · Weight(g) | 210 | 215 |
